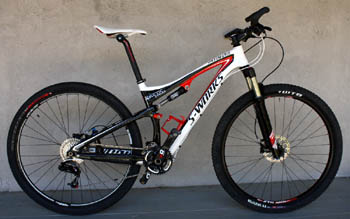

S-WORKS Epic 29er Technical Specifications
| FRAME |
FACT 11m carbon front triangle, 29" geometry, FACT IS construction, gussetless TT S/M, FACT carbon seatstays w/carbon non-drive DO and chainstays, tapered HT, carbon PF-30 BB, 142mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm |
| FORK |
 |
Custom Specialized/RockShox Reba S29 with Brain, 1 1/2-1 1/8" carbon steerer/crown, RockShox Reba lower, Brain Fade, external rebound adj., 100mm |
| REAR SHOCK |
 |
Specialized AFR Shock, Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length |
| HEADSET |
1 1/8" threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing |
| STEM |
Specialized adjustable rise, 31.8mm clamp, 3D forged w/CNC finish, 90mm |
| HANDLEBARS |
 |
Sunline V-One Carbon low-rise 31.8mm bar, 3k carbon weave, 7° sweep, 4° upsweep, 685mm wide |
| GRIPS |
 |
odi Rogue l30mm, lock on |
| BAR ENDS |
 |
Cane Creek Ergo Controll II |
| BRAKES |
 |
Avid Elixir XO, hydraulic disc, 165mm front, 150mm rear rotor |
| BRAKE LEVERS |
Avid Elixir XO, hydraulic disc |
| FRONT DERAILLEUR |
 |
SRAM X0 |
| REAR DERAILLEUR |
SRAM X-0, long cage |
| SHIFT LEVERS |
SRAM X-0, trigger |
| CHAIN |
SRAM PC-1070 w/ Power Link |
| CASSETTE FREEWHEEL |
SRAM X0, 10-speed, 11-36t |
| CRANKSET |
X0 carbon crank, 10-speed XC double, 175mm |
| CHAINRINGS |
38A x 24A, 4-bolt, 104/64mm |
| BOTTOM BRACKET |
SRAM Truvativ Pressfit 30 |
| PEDALS |
 |
Shimano XTR SPD |
| RIMS |
 |
Stans ZTR Arch |
| HUBS |
Stans ZTR |
| SPOKES |
 |
DT Swiss 2.0/1.7mm stainless, alloy nipples |
| FRONT TIRE |
 |
Wolverine, 2.2 |
| REAR TIRE |
|
The Captain Armadillo 2Bliss, 29x2.2, 120 TPI, tubeless ready aramid bead, dual compound |
| SADDLE |
Specialized Phenom Expert, hollow Cr-Mo rails, 155mm |
| SEAT POST |
S-Works Carbon, single-bolt head, 30.9mm, 400mm |
| SEAT BINDER |
Alloy collar 34.9mm clamp ID |
| Most specs courtesy of Specialized.com |
|
